High-Efficiency Heating, A/C & Water Heater Systems

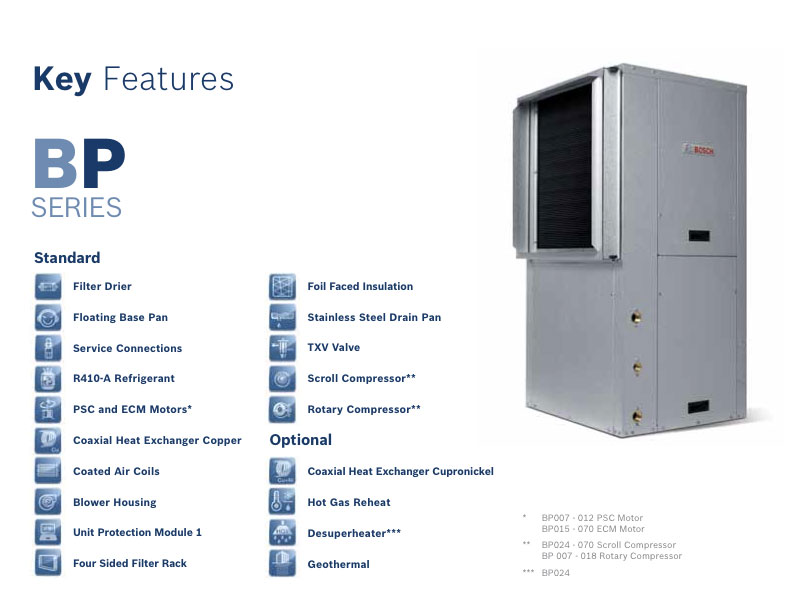

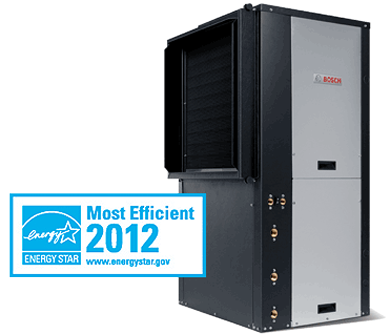

Geo 1000 WA BP Series

This single stage geothermal heat pump unit offers best-in-class energy efficiency and lower operating costs, providing you the ultimate value for your money.

  • Filter Drier
  • Floating Base Pan
  • Service Connections
  • R410-A Refrigerant
  • PSC and ECM Motors
  • Coaxial Heat Exchanger Copper
  • Coated Air Coils
  • Blower Housing
  • Unit Protection Module 1
  • Four Sided Filter Rack
  • Foil Faced Insulation
  • Stainless Steel Drain Pan
  • TXV Valve
  • Scroll Compressor
  • Rotary Compressor
MODELClg Capacity MBtuHEERHtg Capacity MBtuHCOPDimensions HxWxDWeight Lbs.
BP0078.0 25.0 7.0 5.0 32.75x21.5x21.5 185
BP00911.0 26.0 9.0 5.0 32.75x21.5x21.5 192
BP01215.0 23.0 13.0 4.0 32.75x21.5x21.5 205
BP01517.0 29.0 13.0 5.0 39.5x21.5x21.5 218
BP01821.0 26.0 18.0 5.0 39.5x21.5x21.5 222
BP02428.0 28.0 24.0 5.0 47.5X24.25X26.24 340
BP03032.0 27.0 24.0 5.0 47.5X24.25X33.5 404
BP03640.0 26.0 34.0 5.0 47.5X24.25X33.5 415
BP04246.0 26.0 41.0 4.0 58.5X26.0X33.5 465
BP04854.0 26.0 41.0 4.0 58.5X26.0X33.5 470
BP06067.0 24.0 57.0 5.0 66.5X26.0X33.5 520
BP07071.0 22.0 71.0 5.0 66.5X26.0X33.5 562

Warranty Information

  • Compressor and Coils for 120 months - Compressor and Refrigerant Circuit
  • All Parts for 120 months -
  • Limited Labor for 120 months -

Available Documents

  • View Document (Bosch Geothermal Heatpumps, Consumer Literature)
  • View Document (Bosch Geothermal Heatpumps, Consumer Literature)
  • View Document (Quick Start Guide, Specification Sheet, Technical Information)
  • View Document (Warranty Information)
  • View Document (BP / CP Installation Operations Manual, Owners Manual, Installation & Operation)
